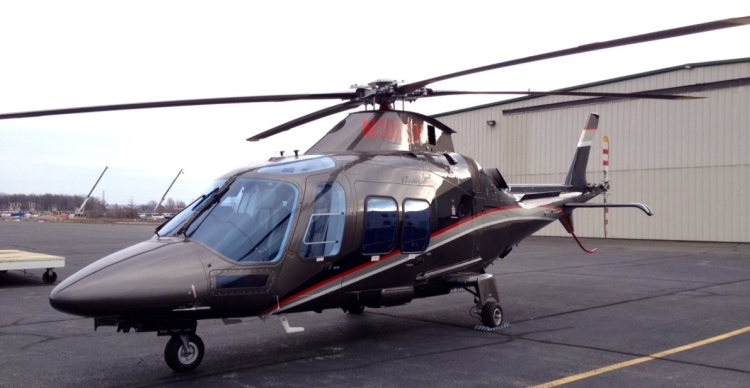

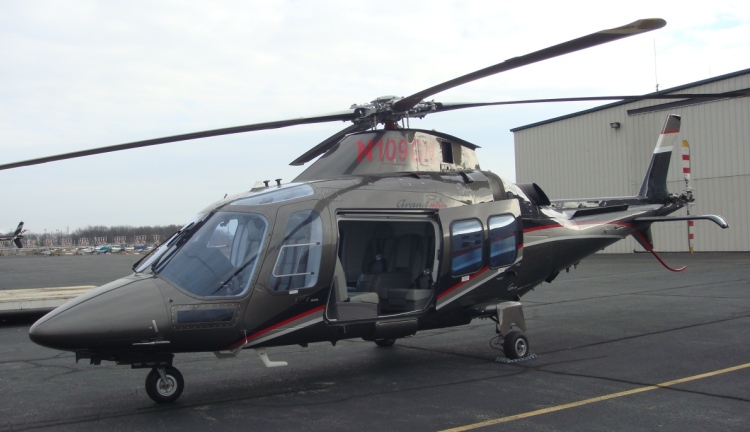

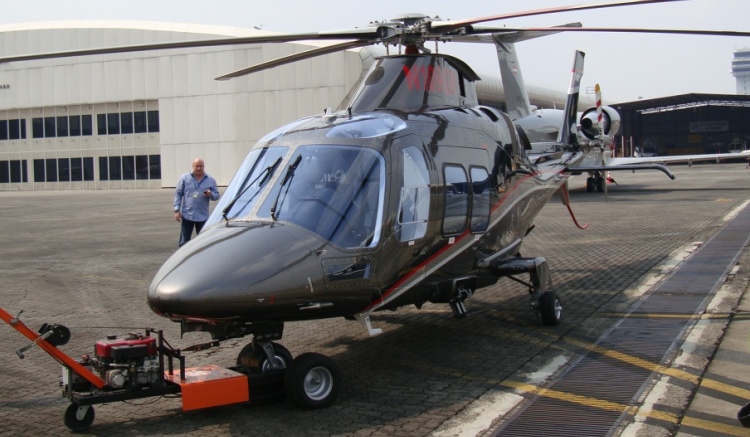

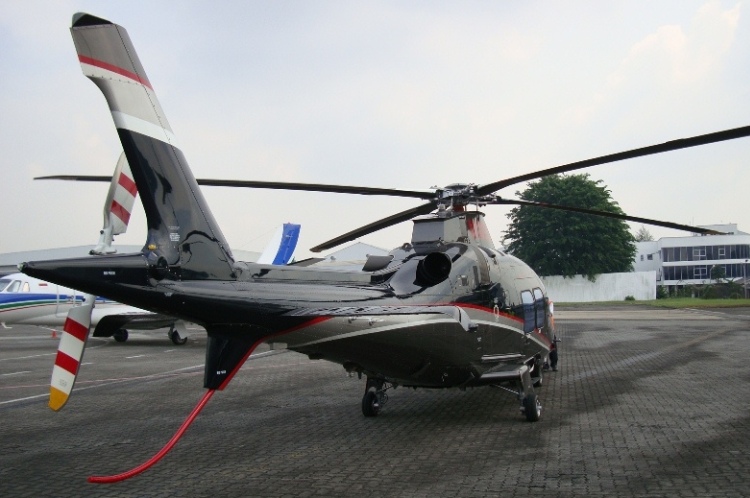

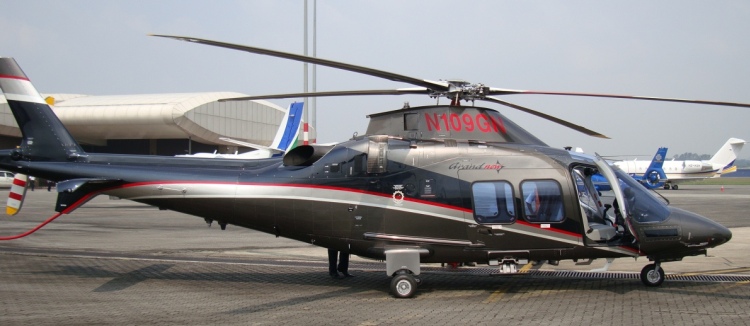

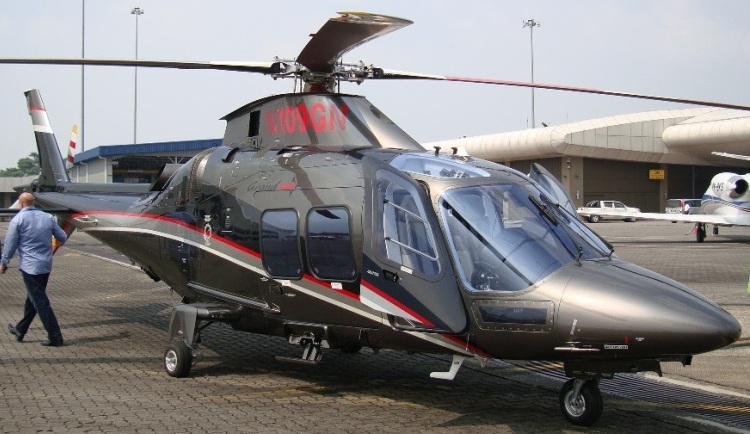

2011 AGUSTA 109SP GrandNew

The GrandNew is the next generation of the proven Grand platform, with a new digital glass-cockpit and a composite material fuselage. The Chelton FlightLogicTM Synthetic Vision EFIS and a new 4-axis digital duplex autopilot provide the pilots with situational awareness and flight management capabilities never achieved before on the light twin class.

Designed using the latest technology, the GrandNew offers high performance capabilities, a large cabin and low environmental footprint for a wide range of roles whilst retaining the attractive economics typical of the light twin category.

Visit Manufacture's Site

View Spec Sheet

2011 AGUSTA 109SP GrandNew Description

Model Agusta 109SP GrandNew
Serial Number 22234
Year 2011
TTSN 60 Hours (Technical flights only!)
Next Aircraft < Previous Aircraft

If you have any questions, or intrested in this aircraft, please feel free to contact us.

Send us Message

Interior (Common)

Cabin air conditioning & heating system (Environmental Control System) Floor carpeting & carpeting protection

Super silent soundproofing

Leatherette covered cabin liners

Double layer acrylic windows

Reading lights, advisory lights, floor courtesy lights

Interior (Cockpit)

Leather bellows on flight controls

Cockpit door window sliders

Windshield wipers (2) w/wiper switches on cyclic grips

Reinforced windshields

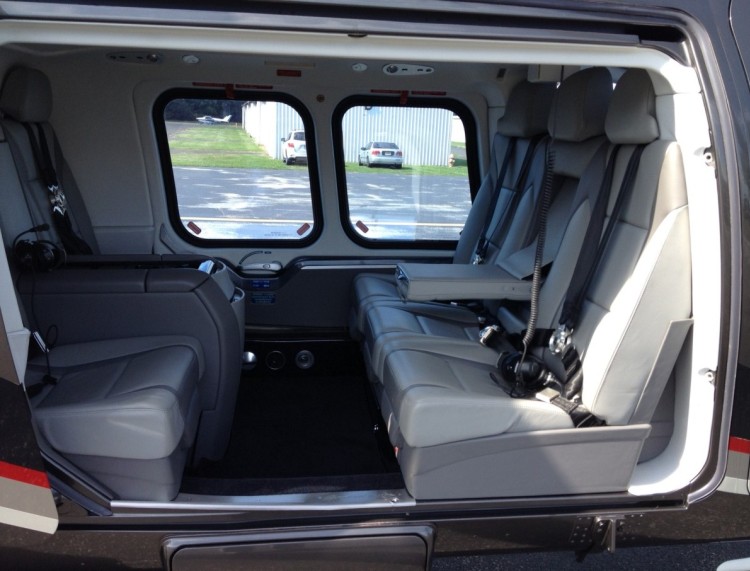

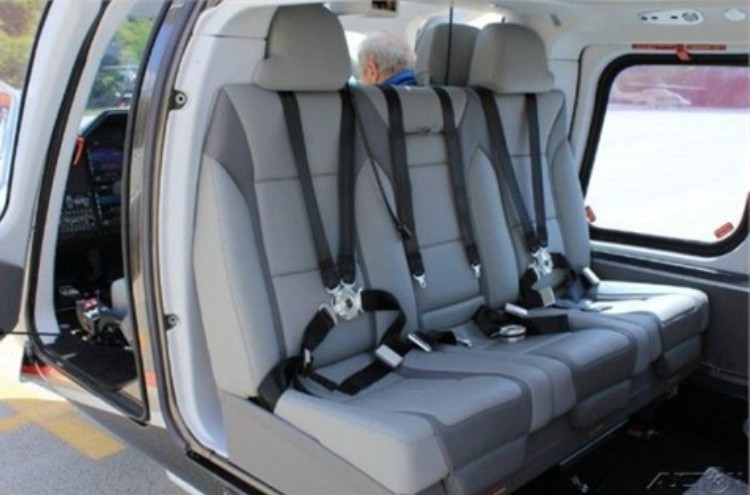

Interior (Cabin)

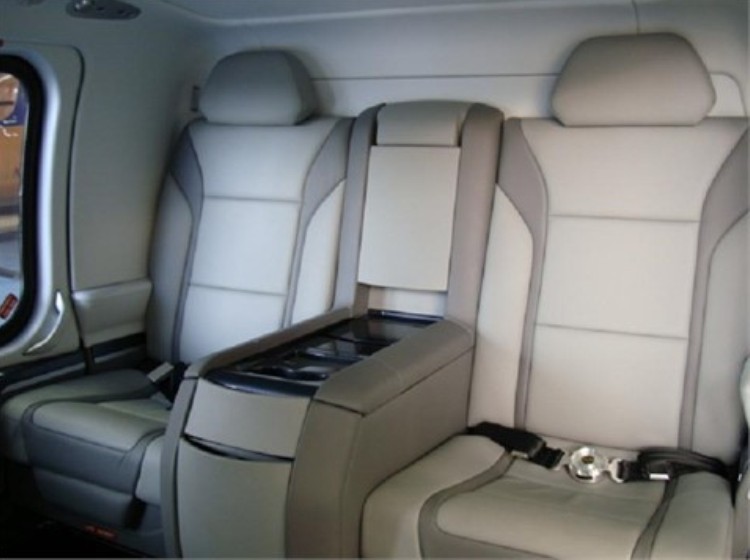

2 Forward facing leather covered seats with central cabinet

4-Point shoulder harnesses w/inertial reels and seat belts for all passenger seats

(6) Active noise canceling headsets

(6) Headset holders

Cabin loudspeakers

Right hand electrically operated passenger step

Left hand electrically operated passenger step

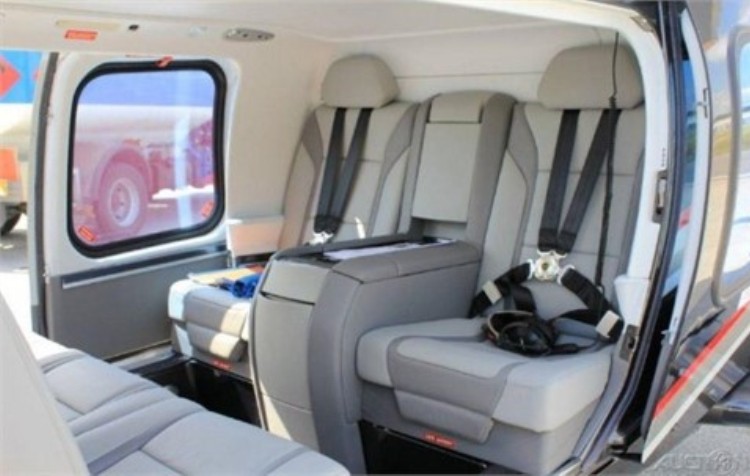

Special Cabin Equipment

5-Place VIP Cabin package to include:

- 3 Aft facing leather covered seats with:

- - See-through modification

- - Foldable armrest

- - Glass holders

- - Single central Aft facing drawer

Fuel System

213 US Gallon fuel system in lieu of standard 152 US Gallon system

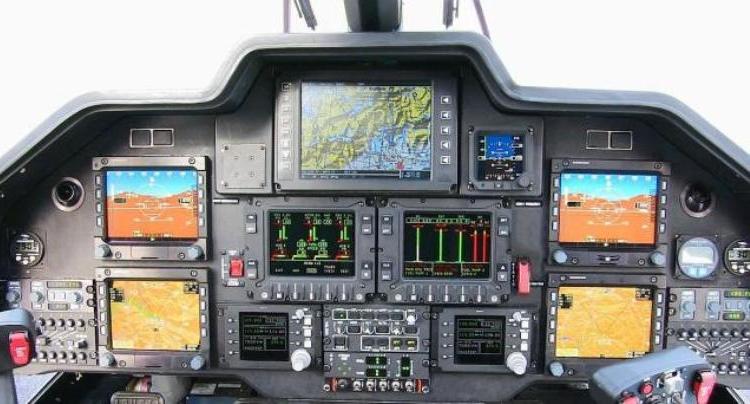

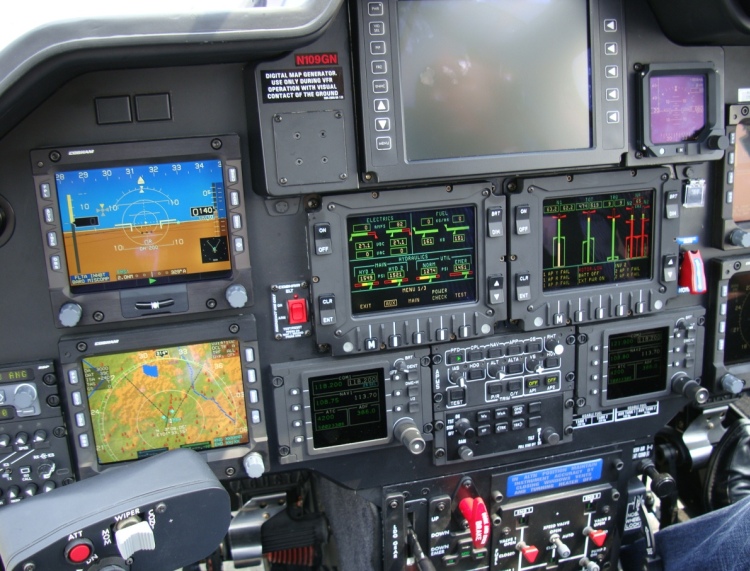

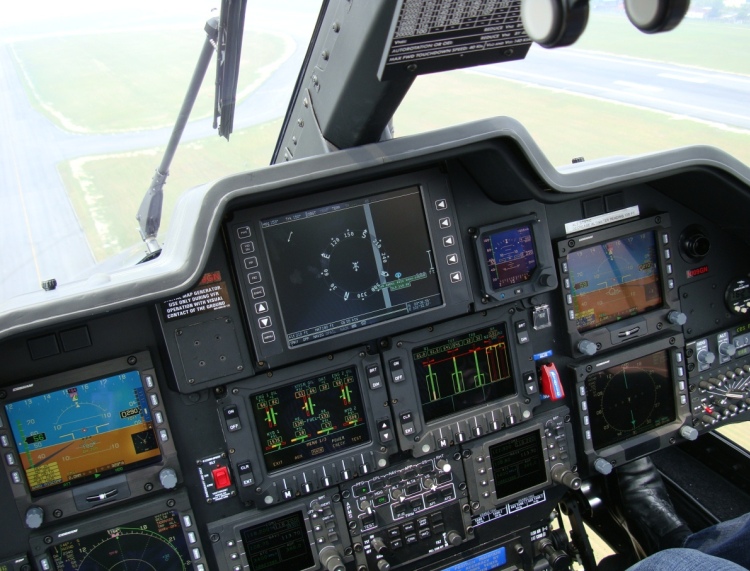

Chelton synthetic vision electronic flight instrument system (4-Tube EFIS cockpit)

Flight management system (FMS)

Helicopter terrain awareness warning system (HTAWS)

Highway in the sky (HITS)

Synthetic vision system (SVS)

4-Axis autopilot w/flight director, plus the following options

Upgrades and Modifications Included:

8.4" Centrally mounted mission display unit

EuroNav V Digital map generator interfaced to FMS and presented on 8.4" cockpit central display

RDR-2000 Weather radar displayed on EFIS

Avidyne TAS-620 Traffic avoidance system displayed on EFIS


Engine compartment fire extinguishers (2)

Pulsed chip detectors (in lieu of quick disconnect)

Mast vibration absorber system

Rotor brake

Locking fuel cap

Emergency float provisions (Only)

Baggage compartment extension (2.3m)

Retractable/Rotating nose mounted landing light

M/R High visibility paint


Always Hangared

Available Immediately


Specifications subject to verification upon inspection and aircraft is subject to prior sale or withdrawal from the market.
